A modular CoreXY printer built from the Flsun i3 (2017) and Mingda Magician X components.
This document outlines the design, component sourcing, mechanical integration, electronics, and firmware of the Chimera iXY project.
NOTE: This page is largely unfinished. Lots of details are to be added later...
Reused components:
- Stepper motors (E0, Z axis)
- 2020 Aluminum extrusions
- V6 Hotend.
- Roller Bearings
- Toothless Idler Pulleys
- Stepper Leadscrew Collet
- Mainboard MKS Gen L v1.0
- Reprap Discount Smart Graphics Controller
- Bolts: M3-M6
- Nuts: M3-M6
- 8mm Linear Rods (Not rails)
- 8mm Linear Rod Bearings
- GT2 6mm Belts (Used Temporarily for measurments and testing)
- Cables (Stepper, Display, Power, etc.)
- PTFE Bowden Tube
- Bowden Extruder
- PTFE Couplings
Reused components:
- Stepper motors (α, β axis)
- 24V 15A Powersupply
- Bolts: M3-M6
- Leadscrews + Collars
- Toothed Idler Pulleys
- Heated Bed
- 30mm axial fan
- 4010 blower fan

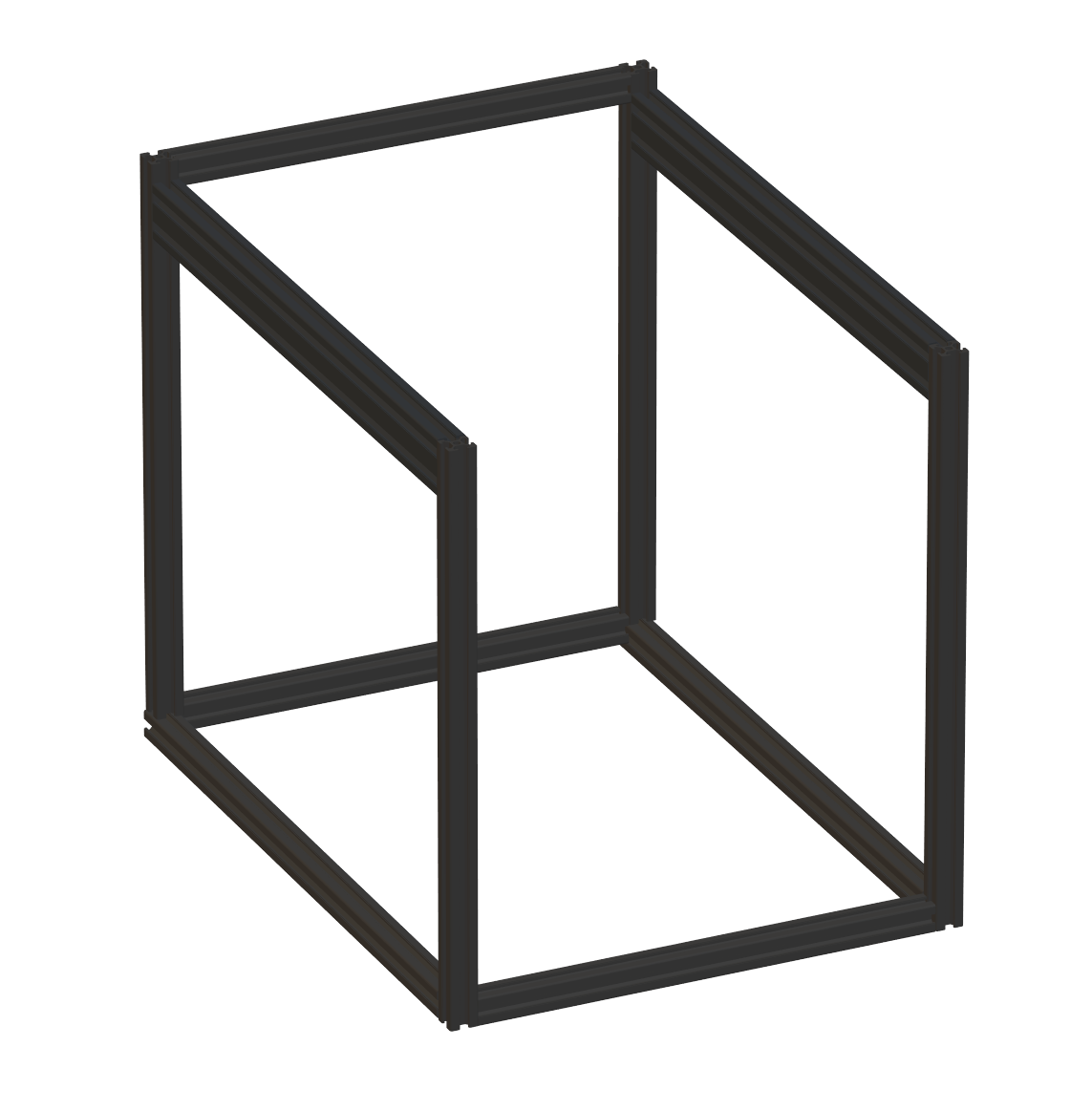

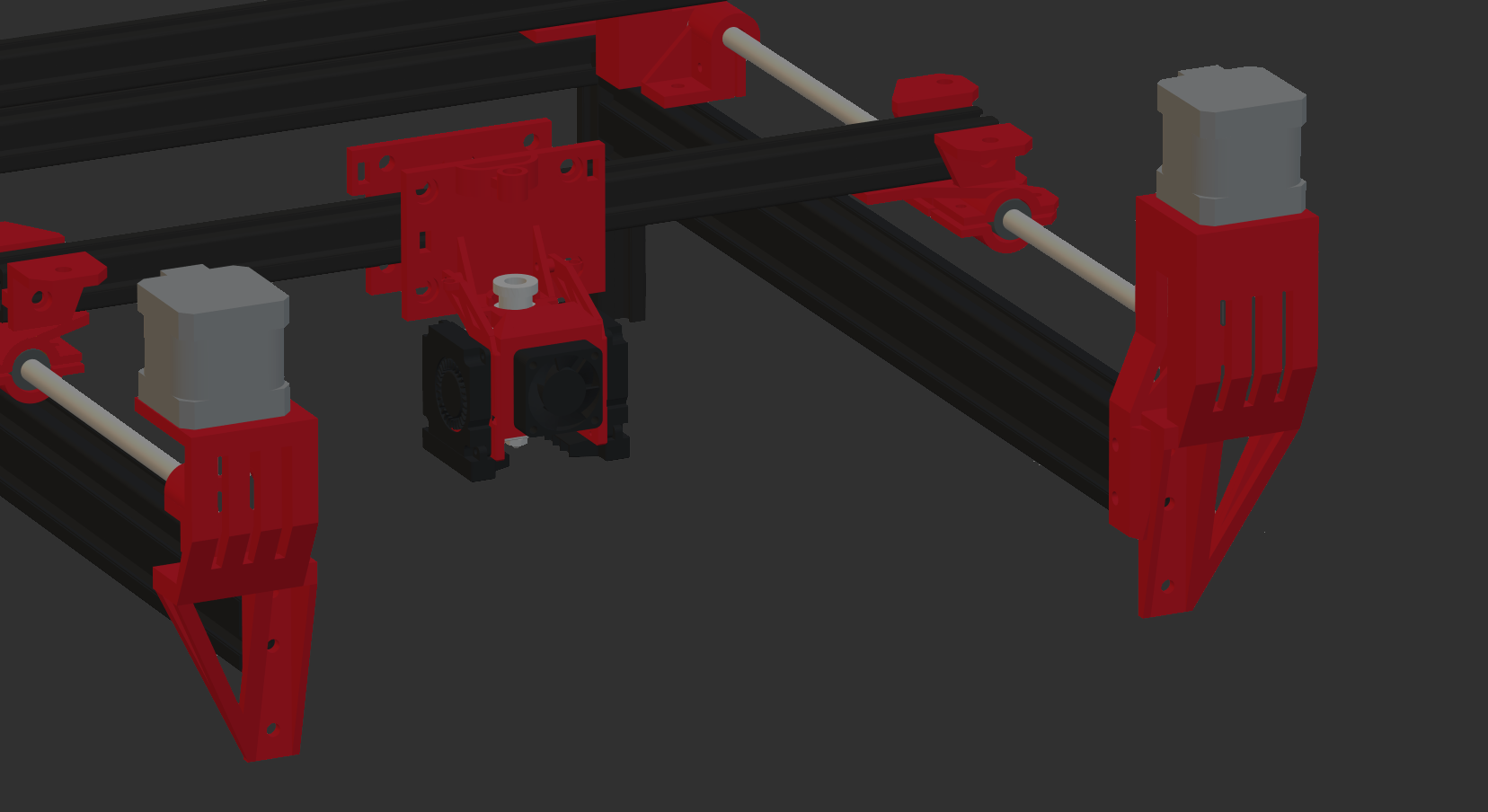

Built around a 2020 & 2040 aluminum frame with 8mm linear rods. Fairly Simple; no extrusions were cut in the first revision.
Controller: MKS Gen L v2.1 (v1.0 will work as well)
Auxillary Control: Miniton Beaglecam v1
Drivers: TMC2209, TMC2208, A4988
Wiring: Fully sleeved harness with JST-XH connectors. High current wires are crimped with a plated connector.
Power: 24V 15A generic PSU (From MMX, unbranded)
Firmware used: Marlin 2.1.2.5 for now. May upgrade to Klipper later. Config files are versioned in the GitHub repo.
Enclosure + Ventilation, speedy power motors compatibility, and triple-z upgrades are on the roadmap.
